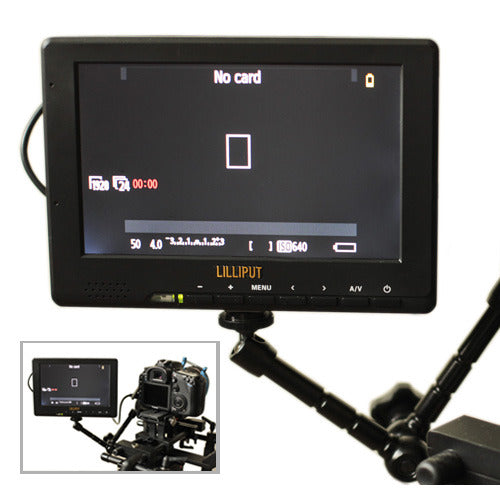

LILLIPUT HD70HP
LILLIPUT HD70HP 7" On-camera HD LCD Field Monitor w/ HDMI in Component in Composite in
| LILLIPUT HD70HP w/ 3 Battery plates: A, B & C. | ||
| A |
New SONY F970/F550 Plate w/ Locker Tightly lock F970/F550. Better have 2 units batteries as spare. |
 |
| B |
Old SONY F970/F550 Plate w/ no Locker can't tightly lock F970/F550. |
|
| C |
The C Plate fits following Batteries: Panasonic DU06/DU21/VBD140; SANYO DZhs301sw; Hitachi DZ-HS303SW/BZ-BP14S/DZ3200/BP07W. |
|
LILLIPUT HD70HP Inputs:
*HDMI input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i), Compatible with Devices with HDMI or mini HDMI output such as Canon 5D mark II,Canon 7D,Nikon D300S and D3S and so on .
*Component(YPbPr) input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i) automatically compatible with PAL/NTSC video.
*Composite input: Two video input and one audio input.
LILLIPUT HD70HP Display Screen features:
Panel Size: 7" TFT LCD monitor No Touchscreen
LED Backlight: YES
Aspect Ratio: 16:9
Display Ratio: 16:9 or 4:3 adjustable
Image Flip: Vertical flip and Horizontal flip
Resolution: 800×480
Brightness: 450cd/㎡
Contrast: 500:1
Viewing Angle: 120°/ 140°(H/V)
Others features of lilliput hd70hp:
OSD Languages: English, Chinese(2 available)
Input Voltage: DC 12V
Current: 650mA (1.2A when charging)
Standby Current: ≤50mA
Power Consumption: ≤8W
Input Resistance: 75Ω
Input Frequency: H/30-60KHz,V/60-75Hz
Audio Output: ≤1W
Speaker: ×1(front)
Weight: 542g
| Accessories | |
| Battery plate | 3 pcs |
| DC 2.5 to DC 2.5 cable | 1 pcs |
| Cloth Sunhood | 1 pcs |
| Plastic Sunhood | 1 pcs |
| Home 12V DC adapter (4 choices, we ship you the right one) | 1 pcs |
| Remote control | 1 pcs |
| Manual |
1 pcs |
|
Comparison |
|||||
| HD1 | HD2 | HD70HP | 667GL | 668GL | |
| Full Screen Dispaly in mode of Monitoring & Recording. | Yes | Yes | No | No | No |
| HDMI Output | No | Yes | No | No | No |
| HDMI Input | Yes | Yes | Yes | Yes | Yes |
|
DVI Mode (Not physical input, |
Yes | Yes | Yes | Yes | Yes |
| Composite Input | Yes | Yes | Yes | Yes | Yes |
| Component Input | Yes | Yes | Yes | Yes | Yes |
| Earphone jack | Yes | Yes | No | No | No |
| Monochrome | Yes,White/Black, Red, Green, Blue | Yes,White/Black, Red, Green, Blue | Yes, Red, Green, Blue | Yes, Red, Green, Blue | Yes, Red, Green, Blue |
| Transparent Menu | Yes | Yes | No | No | No |
| Brightness | 400cd/m2 | 400cd/m2 | 450cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast | 500:1 | 500:1 | 500:1 | 500:1 | 500:1 |
| Display Ratio | 16:9 or 4:3, Auto | 16:9 or 4:3, Auto | 16:9 or 4:3 | 16:9 or 4:3 | 16:9 or 4:3 |
| Color Temperature Adjustable in HDMI & DVI |
Yes |
Yes |
Yes |
Yes |
Yes |
| Image Mirror | Up/Down, Left/Right | Up/Down, Left/Right | Up/Down, Left/Right | Up/Down, Left/Right | Up/Down, Left/Right |
| Battery Life time |
F970, F550, |
F970, F550, |
F970, F550, |
F970, F550, |
2200mAH, 3-4 hours |
|
Weight (include battery) |
0.8KG w/ 0.6KG |
0.8KG w/ 0.6KG |
0.87KG w/ F970 0.67KG w/ F550 0.8KG w/F970 0.6KG w/ F550 |
0.8KG w/ 0.6KG |
0.6KG w/ battery |
| LED Backlight | Yes | Yes | Yes | Yes | Yes |
| OSD Languages |
10: English, Korean, |
10: English, Korean, |
8: English, |
8: English, |
8: English, |
