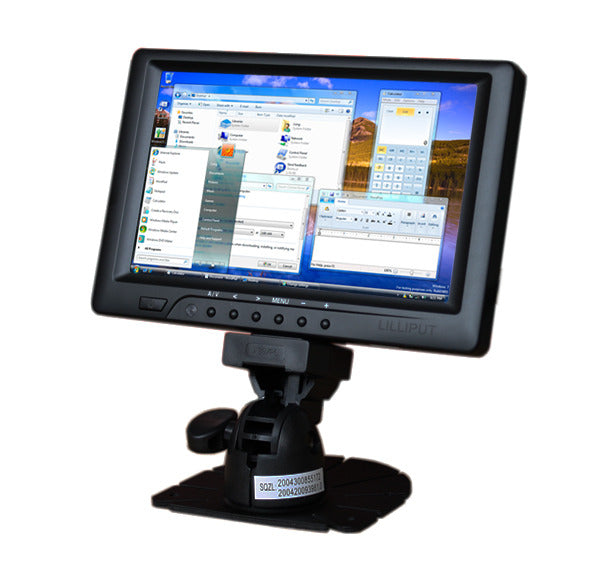

Lilliput 669GL
Lilliput 669GL-70NP/C 7 inch On-camera HD LCD Field monitor (NO TOUCHSCREEN)
| Comparison | ||||
| 619AH | 669GL |
669HB (upgraded from 669GL, |
668GL | |
| HDMI Input | Yes | Yes | Yes | Yes |
|
DVI Input (Not physical input, |
Yes | Yes | Yes | Yes |
| Component Input | No | No | No | Yes |
| Composite Input | Yes | Yes | Yes | Yes |
| VGA Input | Yes | Yes | Yes | No |
| Brightness | 450cd/m2 | 250cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast | 500:1 | 500:1 | 500:1 | 500:1 |
| Display Ratio | 16:9 or 4:3 | 16:9 or 4:3 | 16:9 or 4:3 | 16:9 or 4:3 |
| Image Mirror |
Up/Down |
Up/Down |
Up/Down |
Up/Down |
| Battery Life Time | 6-8 hours | 6-8 hours | 6-8 hours | 3-4 hours |
| LED Backlight | Yes | Yes | Yes | Yes |
| OSD Languages |
8: English, |
8: English, |
8: English, |
8: English, |
|
Display Screen |
||
|
|
Panel Size |
7" TFT LCD monitor(NO touchscreen) |
|
|
LED Backlight |
YES |
|
|
Aspect Ratio |
16:9 |
|
|
Display Ratio |
16:9 or 4:3 adjustable |
|
|
Image Flip |
Vertical flip and Horizontal flip |
|
|
Resolution |
800×480 |
|
|
Brightness |
250cd/㎡ |
|
|
Contrast |
500:1 |
|
|
Viewing Angle |
140°/ 120°(H/V) |
|
Interface |
||
|
|
HDMI input |
Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i) |
|
|
DVI input |
Supports MAX 1920*1080, via DVI to HDMI cable connected with HDMI |
| VGA input | Compatible with PC Support MAX resolution:1920*1080 Support MIN resolution:800*600 |
|
|
|
AV input |
Two video input and one audio input |
|
Others |
||
|
|
OSD Languages |
English, Chinese(2 available) |
|
|
Input Voltage |
DC 12V |
|
|
Current |
650mA (1.2A when charging) |
|
|
Standby Current |
≤50mA |
|
|
Power Consumption |
≤8W |
|
|
Input Resistance |
75Ω |
|
|
Input Frequency |
H/30-60KHz,V/60-75Hz |
|
|
Audio Output |
≥250mW |
|
|
Speaker |
×1(front) |
|
|
Weight |
542g / 582g (with sun shade) |
| Accessories | ||
| VGA 9-pin cable | 1 piece | |
| 14PIN SKS | 1 piece | |
| Bracket | 1 piece | |
| 12V 1.5A DC adapter | 1 piece | |
| Remote control | 1 piece | |
| Manual | 1 copy | |
|
Car Cigarette lighter Power Adapter(DC 12V) |
1 piece | |
| HDMI signal cable(HDMI to HDMI) | 1 piece | |
| DVI line 24+5/DVI-D cable | 1 piece | |
