LILLIPUT FA1013

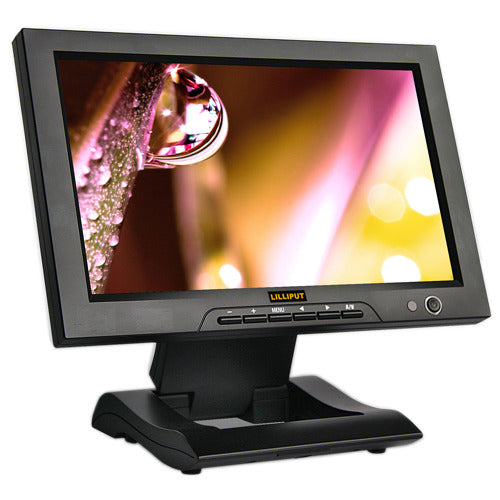

LILLIPUT FA1013 10.1" HD LCD (LED Backlight) Field Monitor for Full HD Video Camera
Usually, Film director use the 11" HDMI LCD Monitor to view the film transferred from cameraman.
HDMI input: supports 480i/p, 576i/p, 720p, 1080i (50/60), 1080p (50/60). Compatible with Devices with HDMI or mini HDMI output such as Canon 5D mark II, Canon 7D, Nikon D300S and D3S and so on.
YPbPr input: supports 480i/p, 576i/p, 720p, 1080i(50/60), 1080p(50/60).
AV input: two video input and one audio input
XLR DC connector: you can power your monitor from your DV.
|
Display Screen |
|
|
Panel Size |
10.1" TFT LCD monitor No Touchscreen |
|
LED Backlight |
YES |
|
Aspect Ratio |
16:9 |
|
Display Ratio |
16:9 or 4:3 adjustable |
|
Resolution |
1024×600 |
|
Brightness |
250cd/㎡ |
|
Contrast |
500:1 |
|
Viewing Angle |
140°/ 110°(H/V) |
image mirror/flip: No image mirror/flip
OSD Languages: English, Chinese(2 available)
Input Voltage: DC 12V (XLR DC Connection)
Current: 500mA(under 800*600-60HZ)
Standby Current: ≤50mA
Power Consumption: ≤6W
Color System: PAL/NTSC
Audio Output: ≧250mW
Speaker: ×1(back)
Ear phone jack: Yes, one M3.5 PHONE JACK
Mounts Process: Standard VESA (75MM) Sockets
Size: (LWD) 259x170x36.5mm
Weight: 1.15kg
Included Accessories:
12V 1.5A DC adapter : 1 piece;
Remote control: 1 piece;
Manual: 1 copy.
|
Comparison |
||
| FA1013 | FA1011 | |
| HDMI Output | No | No |
| HDMI Input | Yes | Yes |
|
DVI Mode (Not physical input, but receive DVI signal |
Yes | Yes |
| Composite Input | Yes | Yes |
| Component Input | Yes | No |
| VGA Input | No | Yes |
| Earphone jack | Yes | No |
| Brightness | 250cd/m2 | 250cd/m2 |
| Contrast | 500:1 | 500:1 |
| Display Ratio | 16:9 or 4:3 | 16:9 or 4:3 |
| Display | LCD, LED Backlight | LED |
| Native Resolution | 1024×600 | 1024×600 |
