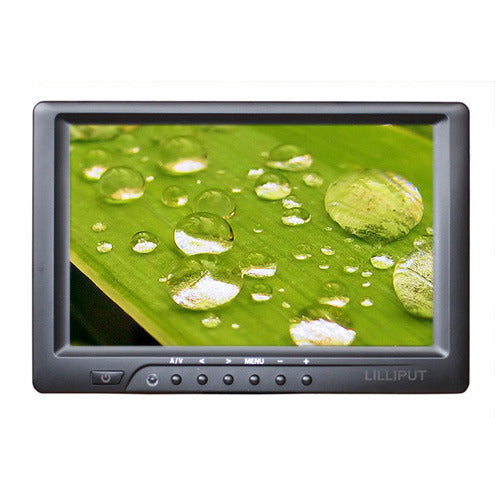

Lilliput 669HB
Lilliput 669HB 7" On Camera HD LCD field monitor w/ HDMI + 450cd/m2 brightness(no touchscreen)
If you want to put a battery on 669HB back, F970/F550 Plate is a good choice.
LILLIPUT 669HB Inputs:
HDMI input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i), Compatible with Devices with HDMI or mini HDMI output such as Canon 5D mark II,Canon 7D,Nikon D300S and D3S and so on .
DVI input: Supports MAX 1920*1080, via DVI to HDMI cable connected with HDMI
Component(YPbPr) input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i) automatically compatible with PAL/NTSC video. Support MIN resolution:800*600
Composite input: Two video input and one audio input
LILLIPUT 669HB Display Screen features:
Panel Size: 7" TFT LCD monitor No Touchscreen
Panel type: a-Si TFT active matrix
LED Backlight: YES
Aspect Ratio: 16:9
Display Ratio: 16:9 or 4:3 adjustable
Image Flip: Vertical flip and Horizontal flip
Resolution: 800×480
Brightness: 450cd/㎡
Contrast: 500:1
Viewing Angle: 120°/ 140°(H/V)
Others features of lilliput 669HB:
OSD Languages: English, Chinese(2 available)
Input Voltage: DC 12V, support MAX 17V
Current: 650mA (1.2A when charging)
Standby Current: ≤50mA
Power Consumption: ≤8W
Input Resistance: 75Ω
Input Frequency: H/30-60KHz,V/60-75Hz
Audio Output: >= 250Mw
Speaker: ×1(front)
Weight: 0.5kg / 0.58kg (with sun shade)
| Accessories Included | |
| VGA 9-pin cable | 1 piece |
| 14PIN SKS Cable | 1 piece |
| Bracket | 1 piece |
| 12V 1.2~1.5A DC adapter(which you can plug into the wall socket) | 1 piece |
| Remote control | 1 piece |
| Manual | 1 copy |
|
Car Cigarette lighter Power Adapter (DC 12V) |
1 piece |
| HDMI signal cable(HDMI to HDMI) | 1 piece |
| DVI line 24+5/DVI-D cable | 1 piece |
| Comparison | ||||
| 619AH | 669GL |
669HB (upgraded from 669GL, |
668GL | |
| HDMI Input | Yes | Yes | Yes | Yes |
|
DVI Input (Not physical input, |
Yes | Yes | Yes | Yes |
| Component Input | No | No | No | Yes |
| Composite Input | Yes | Yes | Yes | Yes |
| VGA Input | Yes | Yes | Yes | No |
| Brightness | 450cd/m2 | 250cd/m2 | 450cd/m2 | 450cd/m2 |
| Contrast | 500:1 | 500:1 | 500:1 | 500:1 |
| Display Ratio | 16:9 or 4:3 | 16:9 or 4:3 | 16:9 or 4:3 | 16:9 or 4:3 |
| Image Mirror |
Up/Down |
Up/Down |
Up/Down |
Up/Down |
| Battery Life Time | 6-8 hours | 6-8 hours | 6-8 hours | 3-4 hours |
| LED Backlight | Yes | Yes | Yes | Yes |
| OSD Languages |
8: English, |
8: English, |
8: English, |
8: English, |
