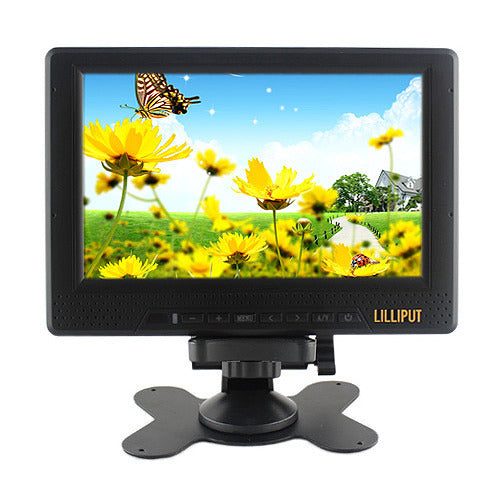

Lilliput 668GL

Lilliput 668GL-70NP/H/Y 7" On Camera LCD Field Monitor w/ HDMI & Component (NO TOUCHSCREEN)

Comparison
	HD1	HD2	HD70HP	667GL	668GL
Full Screen Dispaly in mode of Monitoring & Recording.	Yes	Yes	No	No	No
HDMI Output	No	Yes	No	No	No
HDMI Input	Yes	Yes	Yes	Yes	Yes
DVI Mode (Not physical input, but receive DVI signal via HDMI input, or transform HDMI signal to DVI)	Yes	Yes	Yes	Yes	Yes
Composite Input	Yes	Yes	Yes	Yes	Yes
Component Input	Yes	Yes	Yes	Yes	Yes
Earphone jack	Yes	Yes	No	No	No
Monochrome	Yes,White/Black, Red, Green, Blue	Yes,White/Black, Red, Green, Blue	Yes, Red, Green, Blue	Yes, Red, Green, Blue	Yes, Red, Green, Blue
Transparent Menu	Yes	Yes	No	No	No
Brightness	400cd/m2	400cd/m2	450cd/m2	450cd/m2	450cd/m2
Contrast	500:1	500:1	500:1	500:1	500:1
Display Ratio	16:9 or 4:3, Auto	16:9 or 4:3, Auto	16:9 or 4:3	16:9 or 4:3	16:9 or 4:3
Color Temperature Adjustable in HDMI & DVI	Yes	Yes	Yes	Yes	Yes
Image Mirror	Up/Down, Left/Right	Up/Down, Left/Right	Up/Down, Left/Right	Up/Down, Left/Right	Up/Down, Left/Right
Battery Life time	F970, 7-10 hours; F550, 3-4 hours	F970, 7-10 hours; F550, 3-4 hours	F970, 7-10 hours; F550, 3-4 hours	F970, 7-10 hours; F550, 3-4 hours	2200mAH, 3-4 hours
Weight (include battery)	0.8KG w/ F970 & Plate, 0.6KG w/ F550 & Plate	0.8KG w/ F970 & Plate, 0.6KG w/ F550 & Plate	0.87KG w/ F970 & New Plate, 0.67KG w/ F550 & New Plate, 0.8KG w/F970 & old plate, 0.6KG w/ F550 & old plate	0.8KG w/ F970 & Plate, 0.6KG w/ F550 & Plate	0.6KG w/ battery
LED Backlight	Yes	Yes	Yes	Yes	Yes
OSD Languages	10: English, Chinese, Francais, Japanese Italiano, Deutsch, Espanol, Pycc, Korean, Chinese traditional	10: English, Chinese, Francais, Japanese Italiano, Deutsch, Espanol, Pycc, Korean, Chinese traditional	8: English, Chinese, Francais, Japanese Italiano, Deutsch, Espanol, Pycc	8: English, Chinese, Francais, Japanese Italiano, Deutsch, Espanol, Pycc	8: English, Chinese, Francais, Japanese Italiano, Deutsch, Espanol, Pycc

a Free charger if you order 1 or 2 More 2200mAH battery. (668GL comes with 1pcs 2200mAH battery by default)

LILLIPUT 668gl Inputs:

HDMI input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i), Compatible with Devices with HDMI or mini HDMI output such as Canon 5D mark II, Canon 7D, Nikon D300S and D3S and so on .

Component(YPbPr) input: Supports MAX 1080p ( 1920*1080p ) and 1080i( 1920*1080i) automatically compatible with PAL/NTSC video.

Composite input: Two video input and one audio input

LILLIPUT 668gl Display Screen features:

Panel Size: 7" TFT LCD monitor No Touchscreen

LED Backlight: YES

Aspect Ratio: 16:9

Display Ratio: 16:9 or 4:3 adjustable

Image Flip: Vertical flip and Horizontal flip

Resolution: 800×480

Brightness: 450cd/㎡

Contrast: 500:1

Viewing Angle: 120°/ 140°(H/V)

Others features of lilliput 668gl:

OSD Languages: English, Chinese(2 available)

Input Voltage: DC 12V, support MAX 17V

Battery(built-in): 2200mAh,2.2A/7.4V

Current: 650mA (1.2A when charging)

Standby Current: ≤50mA

Power Consumption: ≤8W

Input Resistance: 75Ω

Input Frequency: H/30-60KHz,V/60-75Hz

Audio Output: >= 250Mw

Speaker: ×1(front)

Weight: 0.5kg / 0.58kg (with sun shade)

Accessories
2200mAh,2.2A/7.4V Li-ion battery	1piece
Sun shade	1piece
Bracket	1piece
12V 1.5A DC adapter	1piece
Remote control	1piece
Manual	1copy
